Developer Onboarding Guide

Welcome to the developer guide for the nlp_retrieval framework.

This document provides an overview of the framework's architecture and a step-by-step guide for extending it with new components (like loaders, retrievers, or rerankers) and benchmarking their performance.

Table of Contents

  1. Framework Overview
  2. Core Principles
  3. How the Service Uses the Framework
  4. Directory Structure
  5. Core Data Models
  6. System Architecture & Workflows
  7. Core Components & Interfaces
  8. Available Components
  9. Indexing Workflow
  10. Search Workflow
  11. Part 1: Adding a New Component
  12. General Steps
  13. Component-Specific Guides
  14. Assembling a Pipeline
  15. Supporting a New File Format in the Service
  16. Part 2: Evaluating Your New Component
  17. Key Evaluation Classes
  18. The Matching Logic
  19. How to Run a Benchmark
  20. Interpreting the Output
  21. Table Retrieval Benchmarks

1. Framework Overview

The nlp_retrieval module provides a modular, configurable, and extensible framework for building and benchmarking end-to-end text retrieval pipelines. It is designed around a "composition over inheritance" model, where a central Searcher orchestrates various independent components to perform indexing and searching tasks.

Core Principles

The framework is built on a few key principles:

  • Modularity: Each component is a self-contained, swappable Python class.
  • Clear Interfaces: Components inherit from an Abstract Base Class (ABC) that defines a strict contract for its methods.
  • Standardized Data Flow: We use Pydantic models (SearchableItem, RetrievalResult) to pass data between components.
  • Batch-First Design: All components are designed to operate on batches (List) of queries or results, enabling efficient processing.

How the Service Uses the Framework

The Cross-Dataset Discovery API is built on this framework. It uses a Searcher with a single retriever, QdrantHybridRetriever (sparse, dense and hybrid search in Qdrant), and no query processor or reranker. For ingestion it uses the file-format loaders (CsvLoader, XlsxLoader, JsonLoader, DocxLoader, PptxLoader, IpynbLoader, SqlDbLoader, ChunkedContentLoader). See Architecture.

The other components (FAISS, Pyserini/BM25, ColBERT, the rerankers, query processors, and the table retrieval methods) are used for research and benchmarking.

Directory Structure

All retrieval-related code resides in cross_dataset_discovery/darelabdb/nlp_retrieval/.

nlp_retrieval/
├── core/                      # Pydantic models
├── loaders/                   # Reads data from sources
├── user_query_processors/     # Processes raw user queries
├── retrievers/                # Indexes data and retrieves candidates
├── rerankers/                 # Re-scores and ranks candidates
├── evaluation/                # Tools for calculating metrics
├── benchmarking/              # Orchestrator for running benchmarks
├── table_retrieval_scripts/   # Unified indexing/benchmark scripts for table retrieval
├── docs/                      # Framework documentation
└── searcher.py                # The main pipeline orchestrator

Each component type has its ABC in its own folder (loaders/loader_abc.py, retrievers/retriever_abc.py, rerankers/reranker_abc.py, user_query_processors/query_processor_abc.py).

Core Data Models

Before you start, familiarize yourself with the two fundamental data models defined in darelabdb/nlp_retrieval/core/models.py:

  • SearchableItem: The canonical representation of a single piece of data to be indexed.
  • item_id: str: A unique identifier for the item.
  • content: str: The main text content used for retrieval.
  • metadata: Dict: A dictionary for any associated metadata.
  • RetrievalResult: Represents a single item returned by a search.
  • item: SearchableItem: The retrieved item.
  • score: float: The relevance score assigned by the retriever or reranker.

2. System Architecture & Workflows

The framework is built upon a set of abstract base classes (ABCs), each defining a specific role in the retrieval pipeline. The Searcher and Benchmarker classes orchestrate the interaction between these components.

Core Components & Interfaces

  • BaseLoader: Loads data from a source (e.g., file, database) and converts it into SearchableItems.
  • BaseUserQueryProcessor: Transforms a batch of user queries into a format suitable for retrieval (e.g., decomposition, keyword extraction).
  • BaseRetriever: Manages the indexing of SearchableItems and the retrieval of candidate results.
  • BaseReranker: Re-scores a list of candidate RetrievalResults to improve ranking quality.

Available Components

Type Classes
Loaders (files) CsvLoader, XlsxLoader, JsonLoader, DocumentJsonLoader, DocxLoader, PptxLoader, IpynbLoader, ChunkedContentLoader, DataframesLoader, TableJsonLoader
Loaders (databases) SqlDbLoader (SQLAlchemy URL)
Loaders (table retrieval methods) AutoDDGLoader, BirdieLoader, JarTableLoader, PneumaLoader, QGpTLoader, TableRAGLoader
Retrievers QdrantHybridRetriever, FaissRetriever (dense), PyseriniRetriever (BM25), ColBERTRetriever, RagatouilleColbertRetriever, MinHashLshRetriever, BirdieRetriever, PneumaRetriever, TableRAGRetriever
Rerankers MxbaiCrossEncoderReranker, BgeReranker, SentenceTransformerCrossEncoderReranker, BiEncoderReranker, LLMReranker, BridgeReranker, JarMIPReranker, PneumaReranker
Query processors PassthroughQueryProcessor (default), DecompositionProcessor, KeywordExtractorProcessor, KeyBERTProcessor, NERQueryProcessor, NgramQueryProcessor, JarDecompositionProcessor, TableRAGQueryProcessor

Indexing Workflow

The indexing process is initiated by the Searcher.index(loader, output_path) method.

  1. Load: The loader (e.g., JsonLoader) loads the data into a List[SearchableItem].
  2. Index: The Searcher passes this list to the index() method of each configured retriever (e.g., PyseriniRetriever, FaissRetriever), each with its own subdirectory of output_path, named after the retriever's class.
  3. Store: Each retriever builds its specific index (e.g., a Lucene index, a FAISS vector index) and saves it in that subdirectory.

QdrantHybridRetriever is the exception: it stores everything in Qdrant and ignores output_path.

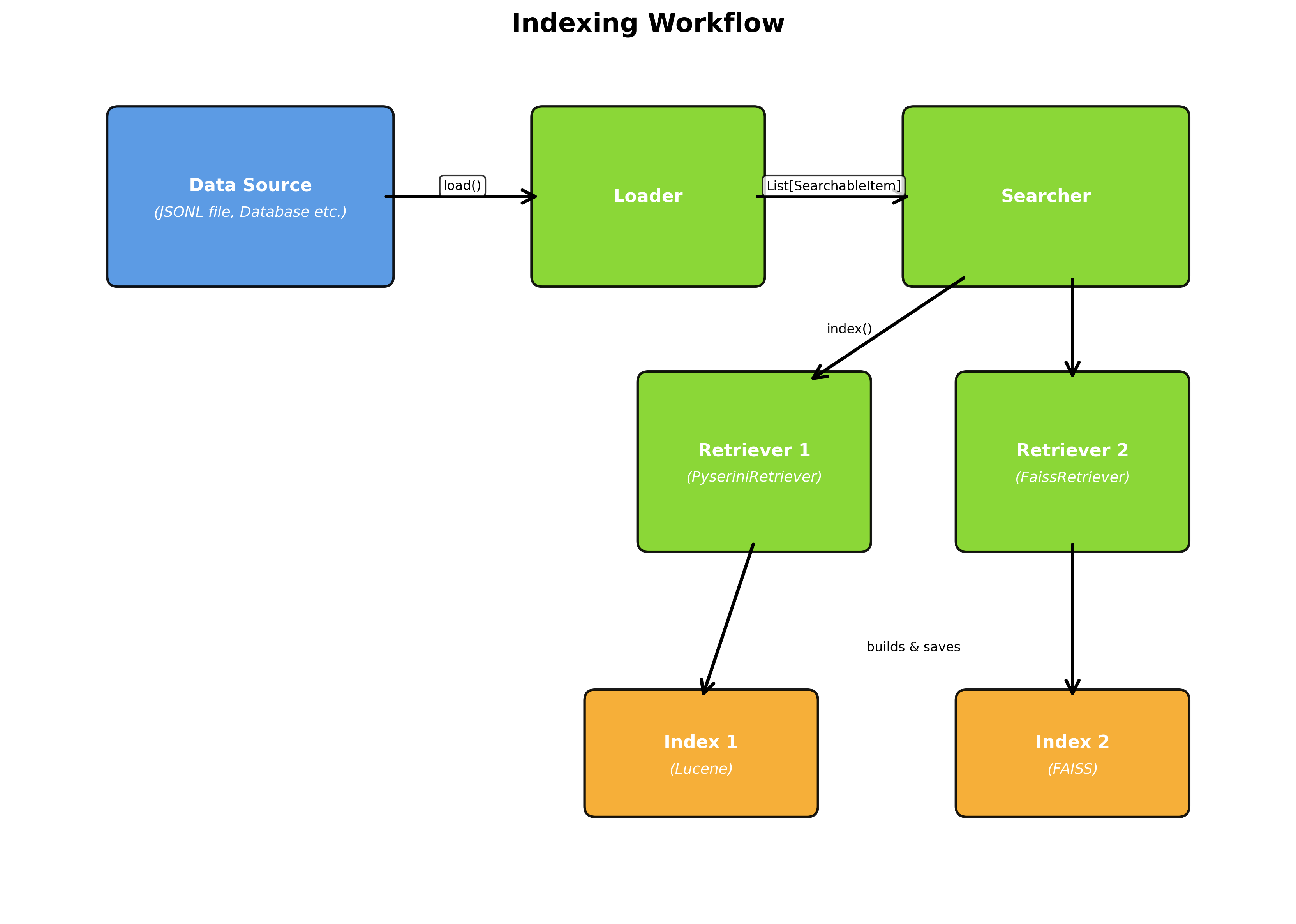

Indexing Workflow Figure 1: The indexing workflow showing data flow from source through loader to multiple retrievers creating their respective indexes.

Search Workflow

The search process is initiated by the Searcher.search(nlqs, output_path, k, **kwargs) method.

  1. Process Query: The input queries are passed to the configured BaseUserQueryProcessor (PassthroughQueryProcessor if none is set).
  2. Retrieve: The Searcher passes the processed queries to each configured retriever, asking each for k × reranker_multiplier candidates (default multiplier 3). Extra keyword arguments are passed through to the retrievers; QdrantHybridRetriever uses them for search_mode and filters.
  3. Combine (Hybrid Search): The Searcher collects the results from all retrievers into a single pool of candidates, deduplicated by item_id.
  4. Rerank (Optional): If a BaseReranker is configured, this combined pool is passed to its rerank() method for re-scoring.
  5. Return: The final results are returned, sorted by score and truncated to k per query.

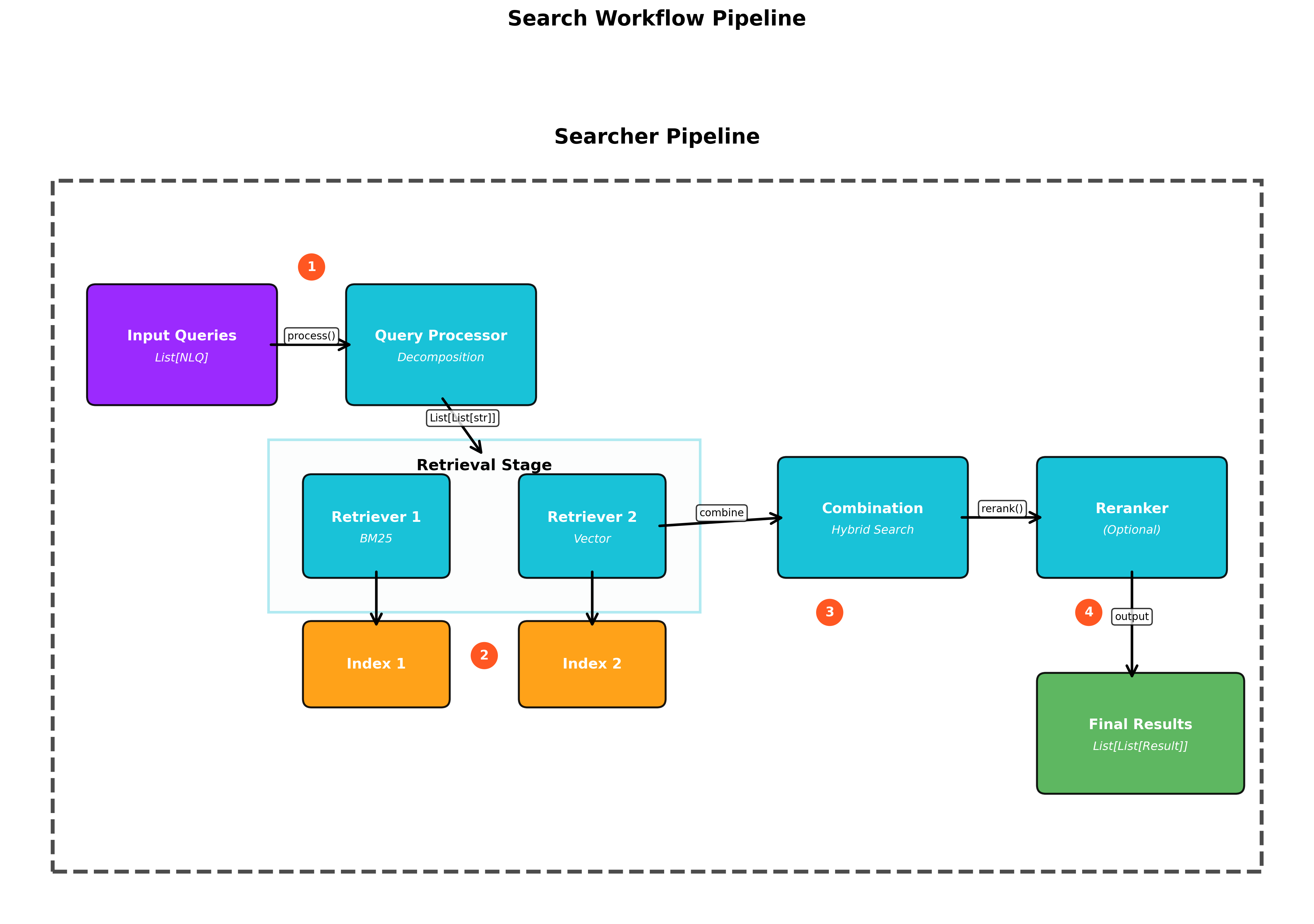

Search Workflow Figure 2: The complete search pipeline from query input through processing, retrieval, combination, and optional reranking.

3. Part 1: Adding a New Component

General Steps

  1. Identify the Component Type: Determine which category your new class falls into: loaders, user_query_processors, retrievers, or rerankers.
  2. Create the File: Add a new Python file in the appropriate directory (e.g., cross_dataset_discovery/darelabdb/nlp_retrieval/retrievers/my_new_retriever.py).
  3. Inherit from the ABC: Your new class must inherit from the correct Abstract Base Class (e.g., BaseRetriever from retriever_abc.py).
  4. Implement All Abstract Methods: Implement every method marked with @abstractmethod in the parent ABC. Make sure your method signatures match the ABC exactly.
  5. Use Core Data Models: Your component must accept and/or return the Pydantic models (SearchableItem, RetrievalResult) as defined in the ABC contract.

Component-Specific Guides

Creating a New Loader

  • Inherit from: BaseLoader
  • Implement:
  • __init__(self, ...): Accept necessary parameters, like file paths or connection details.
  • load(self) -> List[SearchableItem]: Read your data source and create a list of SearchableItem objects.
  • Optionally override:
  • load_stream(self) -> Generator[SearchableItem, None, None]: Yield items one at a time instead of building the whole list. The default implementation calls load(). The service's ingestion uses load_stream(), so override it for any loader that can produce large amounts of data.

Creating a New User Query Processor

  • Inherit from: BaseUserQueryProcessor
  • Implement:
  • __init__(self, ...): Accept any configuration for your processing logic.
  • process(self, nlqs: List[str]) -> List[List[str]]: Receives a list of raw queries and returns a list of lists, where each inner list contains the processed strings (e.g., sub-queries, keywords) for one input query. The output must have the same length as nlqs.

Creating a New Retriever

  • Inherit from: BaseRetriever
  • Implement:
  • __init__(self, ...): Initialize your retrieval model, parameters, etc.
  • index(self, items: List[SearchableItem], output_path: str) -> None: Build your search index from the items' content, store whatever is needed to rebuild the SearchableItems at retrieval time, and save all index files inside output_path.
  • retrieve(self, processed_queries_batch: List[List[str]], output_path: str, k: int, **kwargs) -> List[List[RetrievalResult]]: Load the index and process all sub-queries of each original query. Return one aggregated, deduplicated list of RetrievalResult objects per original query (the output must have the same length as processed_queries_batch). Use **kwargs for retriever-specific options.

Creating a New Reranker

  • Inherit from: BaseReranker
  • Implement:
  • __init__(self, ...): Initialize your reranking model.
  • rerank(self, nlqs: List[str], results_batch: List[List[RetrievalResult]], k: int) -> List[List[RetrievalResult]]: For each query and its candidates, compute new scores, sort the results in descending order, and truncate them to the top k. The output must have the same length as nlqs.

Assembling a Pipeline

Once you have created your custom component, you can use it in a Searcher pipeline.

from darelabdb.nlp_retrieval.searcher import Searcher
from darelabdb.nlp_retrieval.loaders.json_loader import JsonLoader
from darelabdb.nlp_retrieval.retrievers.dense_retriever import FaissRetriever
# Import your new custom component
from darelabdb.nlp_retrieval.rerankers.my_reranker import MyReranker

# 1. Initialize the components
my_loader = JsonLoader(
    file_path="path/to/data.jsonl",       # .json (array) or .jsonl
    item_id_prefix="my-dataset:data.jsonl",
    content_fields=["text"],
)
my_retriever = FaissRetriever(model_name_or_path="BAAI/bge-m3")
my_custom_reranker = MyReranker(model_name="some-model")  # Your new reranker

# 2. Assemble the Searcher
searcher = Searcher(
    retrievers=[my_retriever],
    reranker=my_custom_reranker,
)

# 3. Build the index
INDEX_DIR = "./my_index"
searcher.index(loader=my_loader, output_path=INDEX_DIR)

# 4. Search
queries = ["what is the capital of france?", "what is the best gpu for gaming?"]
results = searcher.search(nlqs=queries, output_path=INDEX_DIR, k=5)

print(results)

Supporting a New File Format in the Service

To let the API ingest a new file format:

  1. Create a loader for it, as described above, and implement load_stream().
  2. Add a branch for the format's original_format value in _build_items() in darelabdb/api_datagems_cross_dataset_discovery/app/main.py, creating your loader with the file's path and the shared metadata (dataset_id, file_object_id, original_filename).
  3. Document the format in the API Overview.

4. Part 2: Evaluating Your New Component

After creating a new component, the next step is to measure its performance. The framework provides tools to run automated benchmarks and calculate standard information retrieval metrics.

Benchmarker Pipeline Figure 3: The benchmarking pipeline showing the complete flow from configuration through evaluation and logging.

Key Evaluation Classes

  • RetrievalEvaluator (darelabdb/nlp_retrieval/evaluation/evaluator.py): The core engine for calculating metrics such as Precision, Recall, F1-Score and Perfect Recall.
  • Benchmarker (darelabdb/nlp_retrieval/benchmarking/benchmarker.py): The high-level orchestrator. It runs different Searcher configurations, calls the RetrievalEvaluator, and logs results to the console and to Weights & Biases.

The Matching Logic

This is the most important concept in our evaluation system. A predicted item is considered a "correct hit" if its metadata contains all the key-value pairs of a gold standard item's metadata.

Example:

  • Gold Standard Metadata: {'page_title': 'Mashable', 'source': 'some_sentence'}
  • Prediction 1 Metadata: {'page_title': 'Mashable', 'source': 'some_sentence', 'value': 'xyz'} → MATCH (a superset)
  • Prediction 2 Metadata: {'page_title': 'Mashable', 'source': 'another_sentence'} → NO MATCH

The evaluator also handles granularity automatically. When computing metrics @k, k refers to the number of unique entities, as defined by the gold standard's metadata keys. For example, if the gold standard metadata is {'page_title': 'A'}, the predictions are first deduplicated to keep only the first item for each unique page_title, and the metrics are calculated on that list.

How to Run a Benchmark

The table retrieval script table_retrieval_scripts/run_benchmark.py is a complete example of setting up and running an evaluation.

Step 1: Prepare the Corpus Loader

The Benchmarker does not depend on your data's format. It only needs an initialized loader whose load() method returns a List[SearchableItem].

from darelabdb.nlp_retrieval.loaders.json_loader import JsonLoader

loader = JsonLoader(
    file_path="path/to/corpus.jsonl",
    item_id_prefix="corpus",
    content_fields=["title", "abstract"],      # each field becomes a separate item
    record_id_field="id",
    metadata_fields=["page_title", "source"],  # None = all remaining fields
)

Step 2: Prepare Queries and Gold Standard

The Benchmarker does not read a specific benchmark file. You create two lists in memory:

  • queries: List[str]: A list of query strings.
  • gold_standard: List[List[RetrievalResult]]: A parallel list, where each inner list contains the correct RetrievalResult objects for the corresponding query.

For the gold standard, only the metadata of each item is used for matching; item_id and content can be placeholders:

from darelabdb.nlp_retrieval.core.models import RetrievalResult, SearchableItem

gold_item = SearchableItem(
    item_id="placeholder",
    content="placeholder",
    metadata={"page_title": "Mashable", "source": "some_sentence"},
)
gold_standard_for_one_query = [RetrievalResult(item=gold_item, score=1.0)]

Step 3: Configure Your Searcher Pipelines

Create an initialized Searcher instance for each configuration you want to test, including your new component.

from darelabdb.nlp_retrieval.retrievers.bm25_retriever import PyseriniRetriever

# Configuration 1: Baseline
bm25_searcher = Searcher(retrievers=[PyseriniRetriever()])

# Configuration 2: Your new component
my_new_searcher = Searcher(retrievers=[MyNewRetriever()])

# Create a list of named configurations for the Benchmarker
searcher_configs = [
    ("BM25_Baseline", bm25_searcher),
    ("My_New_Retriever", my_new_searcher),
]

PyseriniRetriever requires a Java 21 JDK.

Step 4: Initialize and Run the Benchmarker

Pass all the prepared objects to the Benchmarker and call .run().

from darelabdb.nlp_retrieval.benchmarking.benchmarker import Benchmarker
from darelabdb.nlp_retrieval.evaluation.evaluator import RetrievalEvaluator

evaluator = RetrievalEvaluator()
benchmarker = Benchmarker(
    searcher_configs=searcher_configs,
    evaluator=evaluator,
    loader=loader,
    queries=queries,
    gold_standard=gold_standard,
    k_values=[1, 5, 10],
    output_path="./benchmark_results",
    use_wandb=True,
    wandb_project="my-retrieval-project",
    wandb_entity="my-username",
)

benchmarker.run()

Interpreting the Output

  • Console Output: For each configuration, the indexing status, the search speed (queries per second), the metrics for the full retrieved set, and the metrics @k for each value in k_values. At the end, a summary table compares all runs at the largest k.
  • Weights & Biases (W&B) Dashboard: If use_wandb=True, the Benchmarker creates:
    • one run per configuration, with the configuration of all its components, the final metrics, and a performance_metrics_at_k table;
    • a Benchmark_Summary_Report run, with a benchmark_summary_table comparing all configurations.

5. Table Retrieval Benchmarks

The framework includes a suite for evaluating table retrieval methods, documented in detail in nlp_retrieval/docs/TABLE_RETRIEVAL.md.

  • Methods: standard baselines (bm25, dense, colbert) and LLM-augmented or specialized methods (autoddg, birdie, jar, pneuma, qgpt, tablerag).
  • Data: The benchmarks are stored in the DARELab/table_retrieval_data Hugging Face dataset repository. Each benchmark has a corpus.json (the tables) and a queries.json (queries with their gold table_ids). Only the requested benchmarks are downloaded and cached.
  • Scripts: table_retrieval_scripts/run_indexing.py builds the indexes (and caches any LLM-generated augmentations), and table_retrieval_scripts/run_benchmark.py evaluates them. Both take --method <name> or --method all. They load each method's models once and process all benchmarks with it before moving to the next method, so that large LLMs do not exhaust GPU memory.
  • Benchmark registry: The scripts load the benchmarks through the darelabdb.utils_datasets package of the DARELab monorepo (table_retrieval_benchmarks.py), where new benchmarks are registered.
